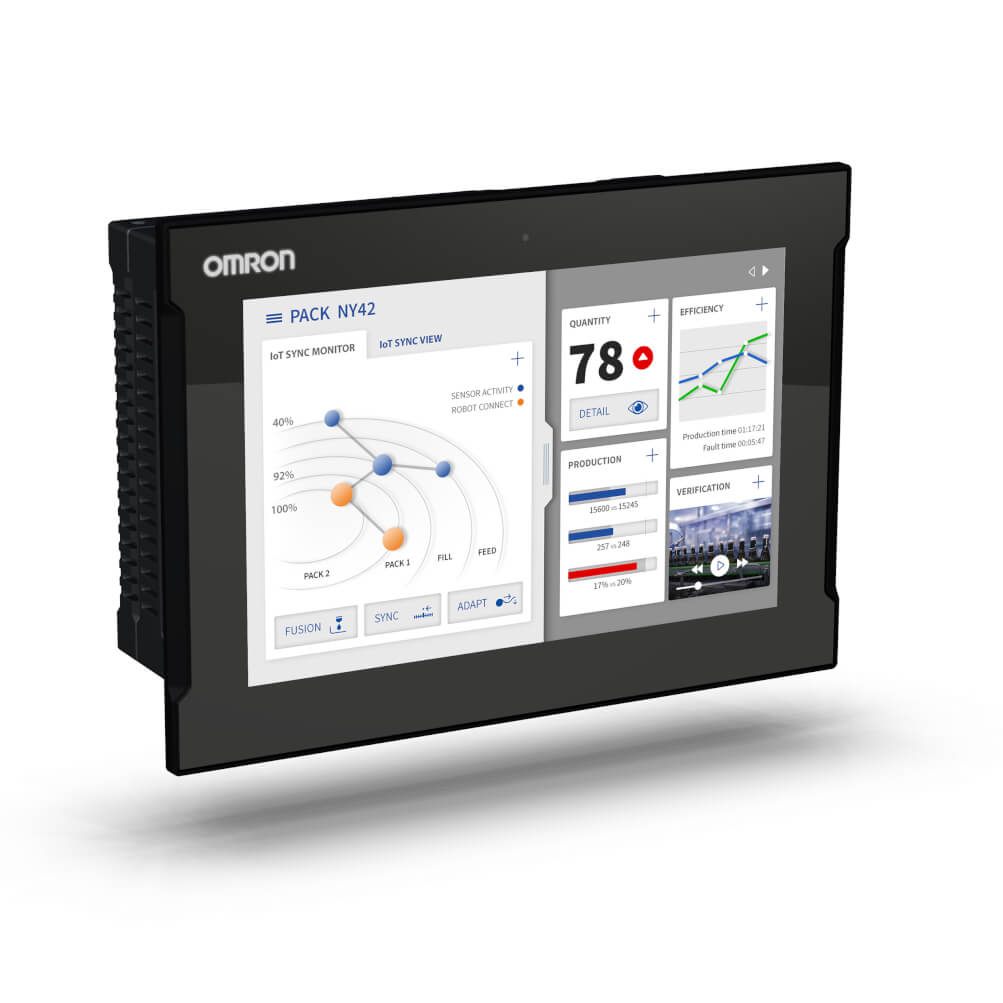

Industrial Panel PC con Intel© Core™ i7-4700EQ NYP1C-211K1-12WC1000

3.606,75 IVA no incluido


Screen diagonal 12.1 inch
Max. number of motion axes 0 axes
Processor family Intel® Core™ i7
Processor specification 4700EQ (2.4 GHz)
Cooling method Active cooling (fan)
Memory 4 GB RAM (non ECC)
Storage 128 GB SSD
Operating system WES 7 (32 bits)
Expansion slot 1 x PCIe slot (X4 lanes)
Modular port RS-232
Communication port(s) EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB
Video output DVI-I
Display ratio 16:10
Material housing Aluminium, black
Number of pixels, horizontal 1280
Number of pixels, vertical 800
Type of display TFT
Touchscreen technology Projected capacitive
Mounting method Build-in
Degree of protection (IP), front side IP65
Operation temperature 0-55 °C
Supply voltage DC 20.4-28.8 V
Height of the front 234 mm
Width of the front 332 mm
Height of panel cutout 216 mm
Width of panel cutout 314 mm
Built-in depth 113 mm

3 disponibles

SKU: NYP1C-211K1-12WC1000 Categoría: Etiqueta:


Industrial Panel PC con Intel© Core™ i7-4700EQ, 4GB DRAM (no-ECC), WES 7 (32bit), PCIe slot, 128GB SSD-iMLC, RS-232, 12.1″
