Descripción

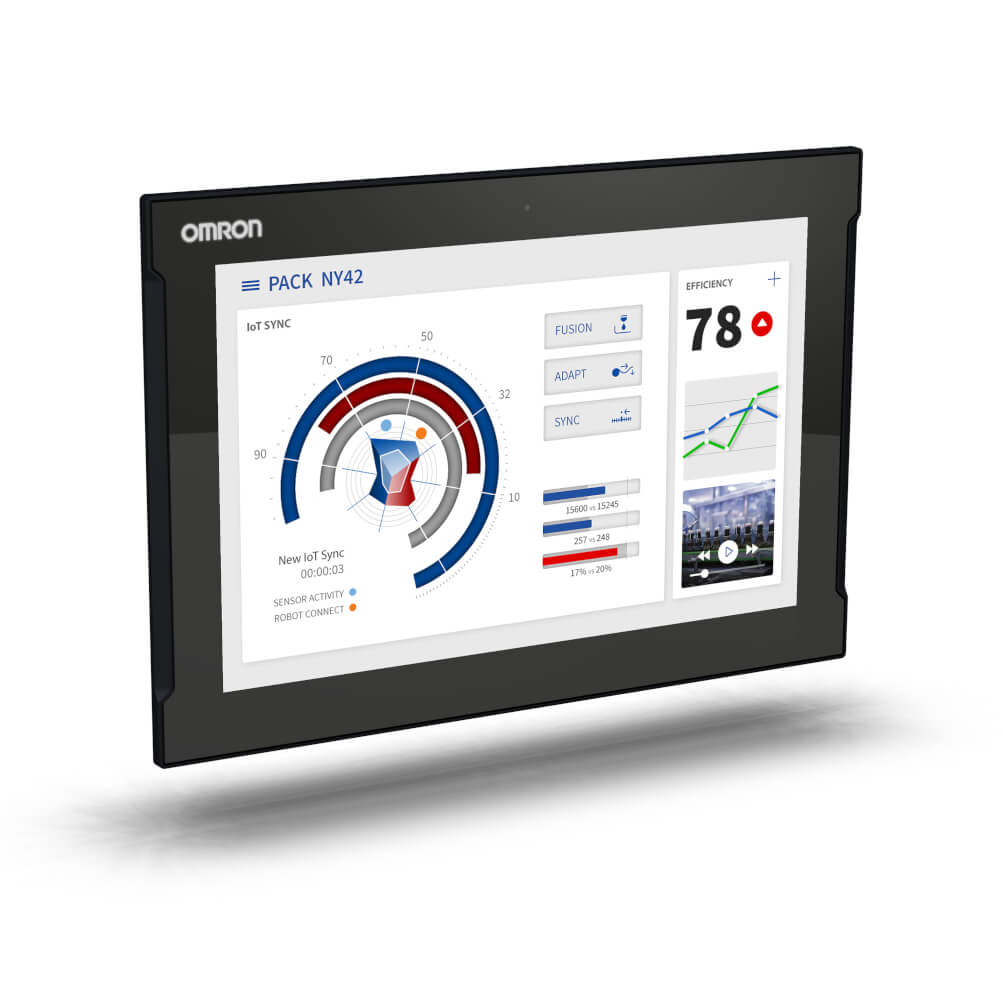

Industrial Panel PC con Intel® Core™ i5-7300U, 8 GB de RAM DDR4 (sin ECC), CFast iMLC de 128 GB, Windows 10 IoT Ent. (64 bits), sin ranura PCIe, sin opción de puerto, pantalla de 15,4″ táctil capacitiva
Industrial Panel PC con Intel® Core™ i5-7300U NYP35-30360-15WC1000
€3.486,00 IVA no incluido
Especificaciones
| Screen diagonal | 15.4 inch |
| Max. number of motion axes | 0 axes |
| Processor family | Intel® Core™ i5 |
| Processor specification | 7300U (2.6 GHz) |
| Cooling method | Passive cooling (fanless) |
| Memory | 8 GB RAM (non ECC) |
| Storage | 128 GB CFast |
| Operating system | Windows 10 (64 bits) |
| Expansion slot | No Expansion |
| Modular port | No Port |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, USB |
| Video output | DVI-D |
| Display ratio | 16:10 |
| Material housing | Aluminium, black |
| Number of pixels, horizontal | 1280 |
| Number of pixels, vertical | 800 |
| Type of display | TFT |
| Touchscreen technology | Projected capacitive |
| Mounting method | Build-in |
| Degree of protection (IP), front side | IP65 |
| Operation temperature | 0-55 °C |
| Supply voltage DC | 20.4-28.8 V |
| Height of the front | 277 mm |
| Width of the front | 401 mm |
| Height of panel cutout | 259 mm |
| Width of panel cutout | 383 mm |
| Built-in depth | 63 mm |
3 disponibles
