Descripción
Industrial Panel PC con Intel® Celeron® 3965U, 4 GB de RAM DDR4 (sin ECC), SSD-iMLC de 128
GB, Windows 10 IoT Ent. (64 bits), ranura PCIe, RS-232, pantalla de 15,4” táctil capacitiva

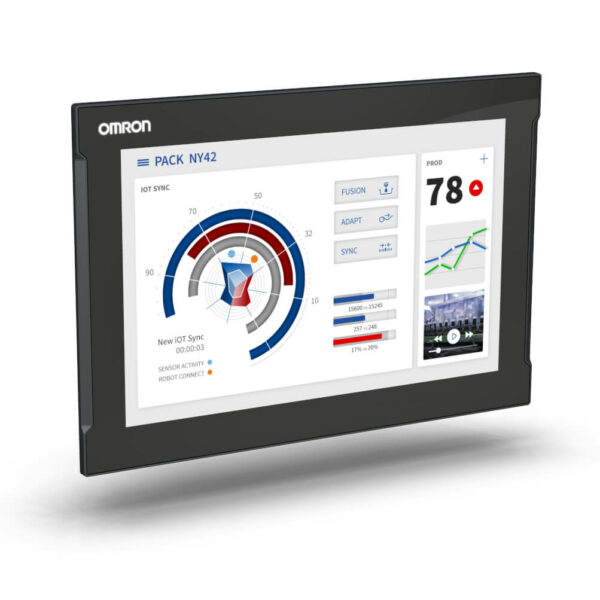

Industrial Panel PC con Intel® Celeron® 3965U NYP2C-213K1-15WC1000
€3.798,75 IVA no incluido
Especificaciones
| Screen diagonal | 15.4 inch |
| Max. number of motion axes | 0 axes |
| Processor family | Intel® Celeron® |
| Processor specification | 3965U (2.2 GHz) |
| Cooling method | Passive cooling (fanless) |
| Memory | 4 GB RAM (non ECC) |
| Storage | 128 GB SSD |
| Operating system | Windows 10 (64 bits) |
| Expansion slot | 1 x PCIe slot (X2 lanes) |
| Modular port | RS-232 |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB |
| Video output | DVI-D |
| Display ratio | 16:10 |
| Material housing | Aluminium, black |
| Number of pixels, horizontal | 1280 |
| Number of pixels, vertical | 800 |
| Type of display | TFT |
| Touchscreen technology | Projected capacitive |
| Mounting method | Build-in |
| Degree of protection (IP), front side | IP65 |
| Operation temperature | 0-55 °C |
| Supply voltage DC | 20.4-28.8 V |
| Height of the front | 277 mm |
| Width of the front | 401 mm |
| Height of panel cutout | 259 mm |
| Width of panel cutout | 383 mm |
| Built-in depth | 97 mm |
Disponible para reserva
