Descripción
Industrial Panel PC con Intel® Atom™ E3940, 4 GB DRAM (sin ECC), CFast iMLC de 128 GB,
Windows 10 IoT 2019 (64 bits), sin ranuras de expansión, sin opción de interfaz, pantalla táctil
capacitiva de 12,1” (1280×800) integrada

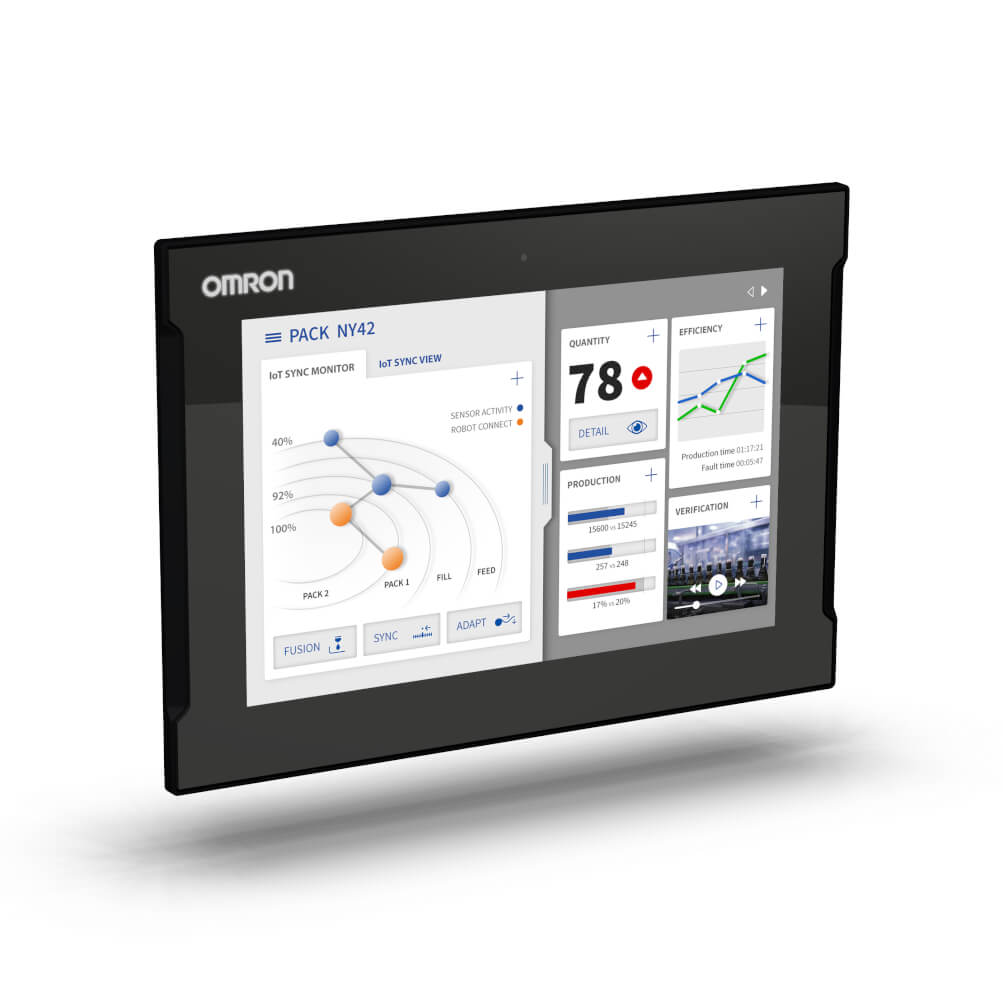

Industrial Panel PC con Intel® Atom™ E3940 NYP2A-20460-12WC1000
€2.206,50 IVA no incluido
Especificaciones
| Screen diagonal | 12.1 inch |
| Max. number of motion axes | 0 axes |
| Processor family | Intel® Atom™ |
| Processor specification | E3940 (1.6 GHz) |
| Cooling method | Passive cooling (fanless) |
| Memory | 4 GB RAM (non ECC) |
| Storage | 128 GB CFast |
| Operating system | Windows 10 (64 bits) |
| Expansion slot | No Expansion |
| Modular port | No Port |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, USB |
| Video output | DVI-D |
| Display ratio | 16:10 |
| Material housing | Aluminium, black |
| Number of pixels, horizontal | 1280 |
| Number of pixels, vertical | 800 |
| Type of display | TFT |
| Touchscreen technology | Projected capacitive |
| Mounting method | Build-in |
| Degree of protection (IP), front side | IP65 |
| Operation temperature | 0-55 °C |
| Supply voltage DC | 20.4-28.8 V |
| Height of the front | 234 mm |
| Width of the front | 332 mm |
| Height of panel cutout | 216 mm |
| Width of panel cutout | 314 mm |
| Built-in depth | 63 mm |
3 disponibles
