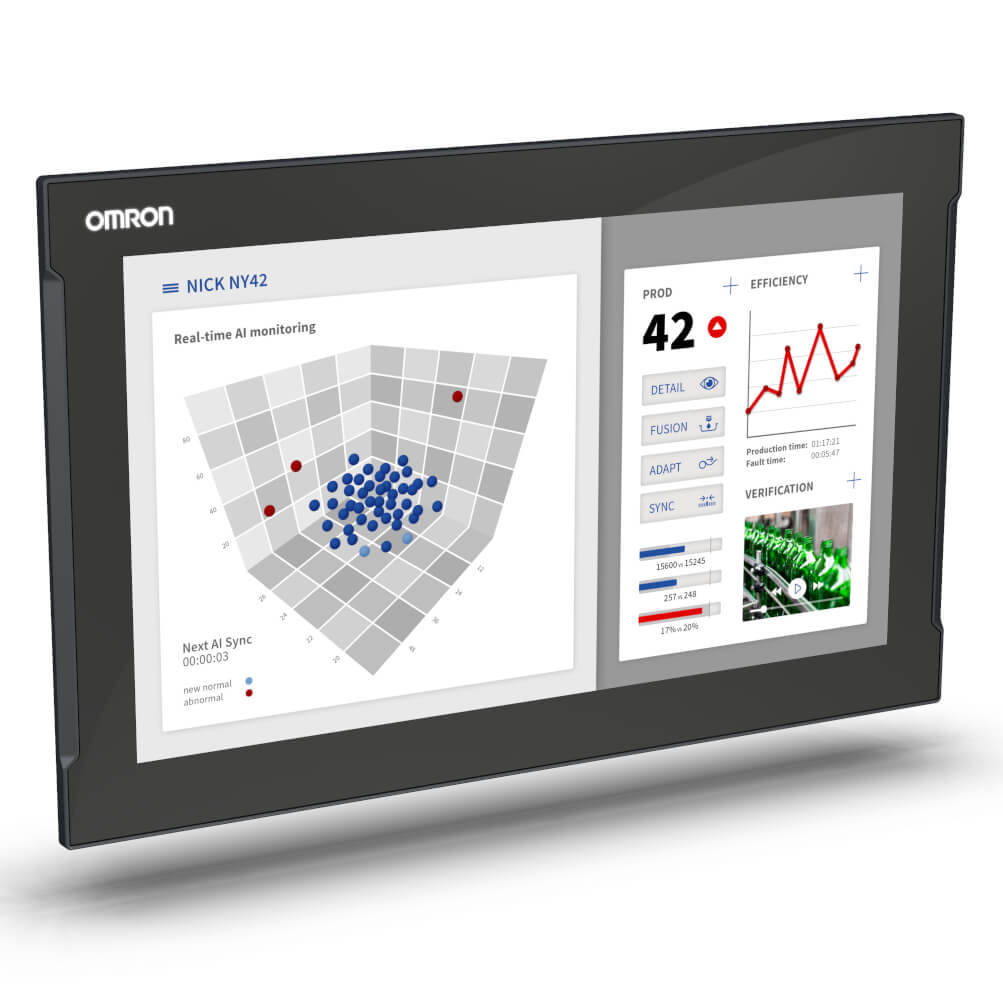

Industrial Panel PC con Intel® Atom™ E3940 NYP2A-20460-15WC1000

2.717,00 IVA no incluido

Especificaciones

Screen diagonal 18.5 inch
Max. number of motion axes 0 axes
Processor family Intel® Atom™
Processor specification E3940 (1.6 GHz)
Cooling method Passive cooling (fanless)
Memory 4 GB RAM (non ECC)
Storage 128 GB CFast
Operating system Windows 10 (64 bits)
Expansion slot No Expansion
Modular port No Port
Communication port(s) EtherNet/IP, Ethernet TCP/IP, USB
Video output DVI-D
Display ratio 16:9
Material housing Aluminium, black
Number of pixels, horizontal 1920
Number of pixels, vertical 1080
Type of display TFT
Touchscreen technology Projected capacitive
Mounting method Build-in
Degree of protection (IP), front side IP65
Operation temperature 0-55 °C
Supply voltage DC 20.4-28.8 V
Height of the front 303 mm
Width of the front 481 mm
Height of panel cutout 285 mm
Width of panel cutout 463 mm
Built-in depth 63 mm

3 disponibles

SKU: NYP2A-20460-15WC1000 Categoría: Etiqueta:

Descripción

Industrial Panel PC con Intel® Atom™ E3940, 4 GB DRAM (sin ECC), CFast iMLC de 128 GB,
Windows 10 IoT 2019 (64 bits), sin ranuras de expansión, sin opción de interfaz, pantalla táctil
capacitiva de 18,5” (1920×1080) integrada
