€10.537,00 IVA no incluido
| IPC type | Panel PC |
| Controller type | AI Machine Control |
| Max. number of motion axes | 64 axes |
| Screen diagonal | 15.4 inch |
| Processor family | Intel® Core™ i7 |
| Processor specification | 4700EQ (2.4 GHz) |
| Cooling method | Active cooling (fan) |
| Memory | 8 GB RAM (non ECC) |
| Storage | 128 GB SSD |
| Operating system | WES 7 (64 bits) |
| Expansion slot | 1 x PCIe slot (X4 lanes) |
| Modular port | RS-232 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB |
| Video output | DVI-I |
| Display ratio | 16:10 |
| Number of pixels, horizontal | 1280 |
| Number of pixels, vertical | 800 |
| Type of display | TFT |
| Touchscreen technology | Projected capacitive |
| Mounting method | Build-in |
| Material housing | Aluminium, black |
| Degree of protection (IP), front side | IP65 |
| Operation temperature | 0-55 °C |
| Supply voltage DC | 20.4-28.8 V |
| Height of the front | 277 mm |
| Width of the front | 401 mm |
| Height of panel cutout | 259 mm |
| Width of panel cutout | 383 mm |
| Built-in depth | 113 mm |
3 disponibles

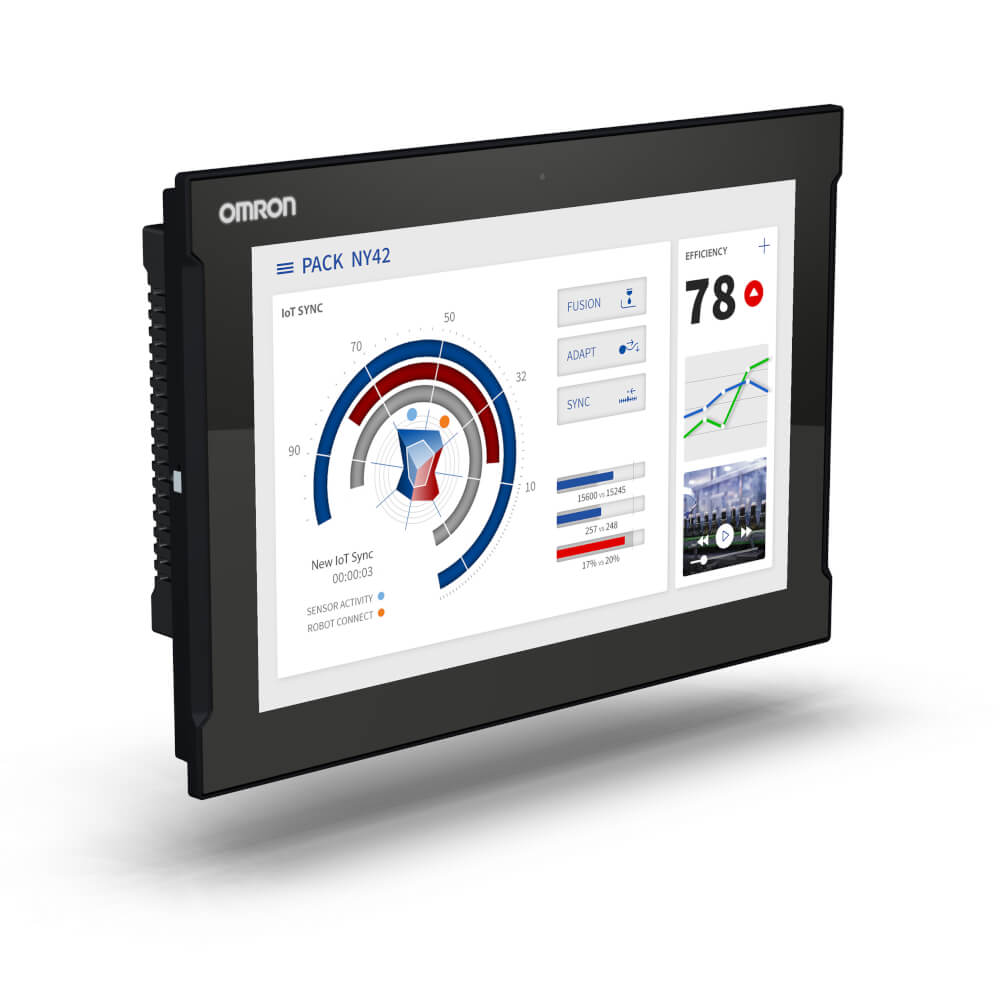

Controlador de máquinas IA para 64 ejes, Industrial Panel PC con Intel© Core™ i7-4700EQ, 8 GB de DRAM (sin ECC), disco duro SSD-iMLC de 128 GB, WES 7 (64 bits), ranura de expansión PCIe, RS-232, monitor de 15,4″ con pantalla táctil capacitiva
