Descripción

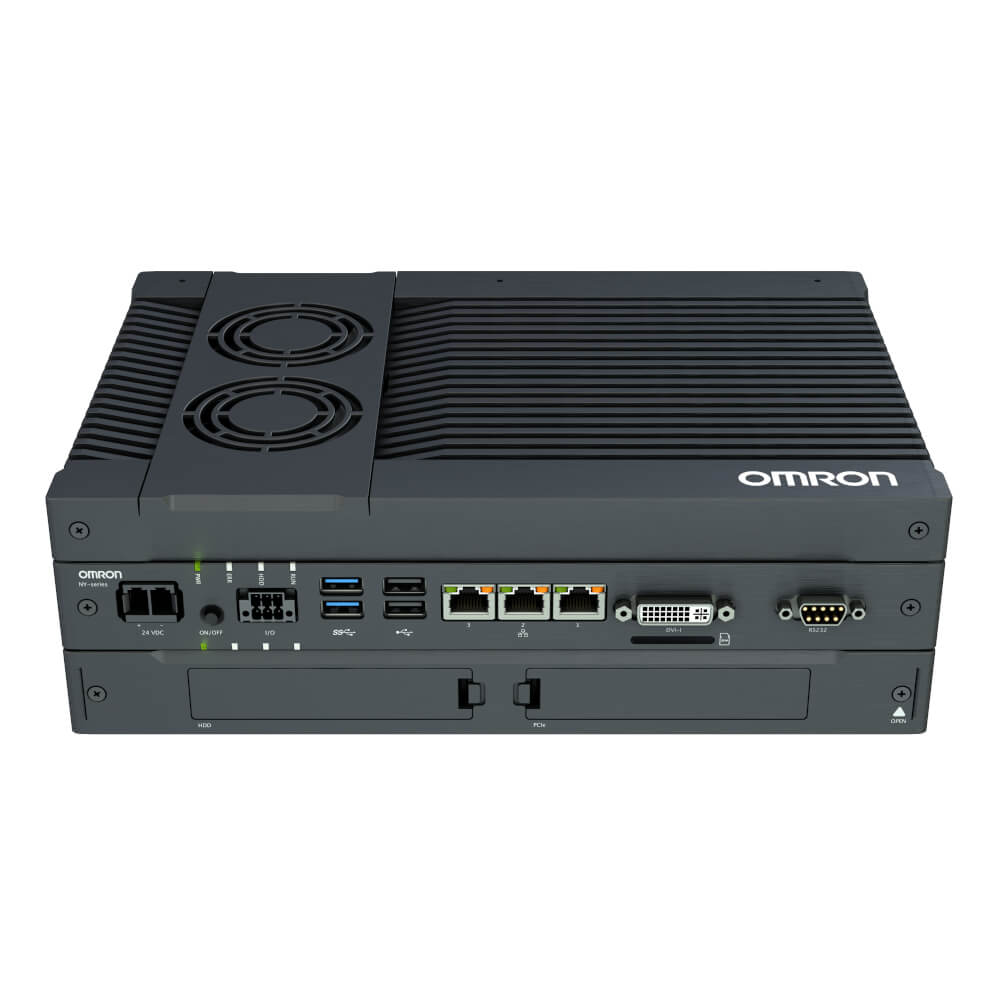

Controlador de máquinas IA para 16 ejes, Industrial Box PC con Intel© Core™ i7-4700EQ, 8 GB de DRAM (sin ECC), disco duro SSD-iMLC de 128 GB, WES 7 (64 bits), ranura de expansión PCIe, RS-232
€9.135,00 IVA no incluido
IPC type | Box PC |
Controller type | AI Machine Control |
Max. number of motion axes | 16 axes |
Processor family | Intel® Core™ i7 |
Processor specification | 4700EQ (2.4 GHz) |
Cooling method | Active cooling (fan) |
Memory | 8 GB RAM (non ECC) |
Storage | 128 GB SSD |
Operating system | WES 7 (64 bits) |
Expansion slot | 1 x PCIe slot (X4 lanes) |
Modular port | RS-232 |
Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB |
Video output | DVI-I |
Material housing | Aluminium, black |
Degree of protection (IP) | IP20 |
Operation temperature | 0-55 °C |
Supply voltage DC | 20.4-28.8 V |
Height | 89 mm |
Width | 282 mm |
Depth | 195 mm |
Disponible para reserva
Controlador de máquinas IA para 16 ejes, Industrial Box PC con Intel© Core™ i7-4700EQ, 8 GB de DRAM (sin ECC), disco duro SSD-iMLC de 128 GB, WES 7 (64 bits), ranura de expansión PCIe, RS-232
